Specification:

Product advantage

 1. Ultra-thin design. The external use anodized aluminium alloy to show elegance and luxury. It has both good lighting effects and beautiful appearance.

 2. This series of products using low-power LED chip to avoid highly concentrated heat and using highly efficient thermal conductivitve silicone pad to enlonger lamp life.

   3. Unique luminous design of using high permeability light guide plate to form a uniform soft yet bright illumination.

Features:

1. Advanced constant current driver.

2. Professional thermal management.

3. Instant on, no warm up time required.

4. No noise, no flickering.

5. No UV or IR radiation in the beam, mercury free.

6. Anti-shock, anti-moisture.

7. Long lifespan, higher than 50,000H.

8. CE, RoHS certified.

 use
2.1 Installation Instructions
This product, both for embedded and hoisting installation.
Each of the lamp by the company are to provide a power adapter, AC power cable port will be connected through the lighting market power after the power outlet of the quick connector quick connector connections can lit after power lamps.

Product advantage

A.      Embedded Installation

B.      lifting (hoisting) Installation
Schematic diagram

Notes:
1. in the ceiling above the two into a linear order (linear dimensions 535 *535mm) round stainless steel screws fixed davit;
1.2. the lifting wildebeest screwed to the frame;
1.3. angle of the stainless steel hoisting rope horse through the tangle;
1.4. and then hanging from the cord into the stainless steel clamping lock on it.
1.5. Description:
The lamp IP40, does not have the waterproof function;
Do not use to extend the service life of alcohol and other volatile solvents to clean the lamp body;
Cleaning cloth moistened with soapy water using soft wipe after wringing light body;
Non-professionals do not overhaul lamps;
The lamp power constant current power supply for the dedicated adapter, do not replace the power supply without permission.
 environmental requirements
LED flat light of this paragraph at room temperature (25 °C) environment, the maximum long-term use of light body temperature below 50 °C, do not need to install a separate cooling device.
Ambient temperature: -20 ~ 60 °C;
Storage temperature: -40 ~ 85 °C.

 Packing
Carton: 675*220*655(5PCS/box)
Single Light Weight:4.89Kg
Gross weight :27.6Kg

Our company is a big company-----registered capital is RMB 60000000 and have a 3000 square meters dust-free workshop for LED encapsulation and another 6000 square meters electronic workshop for LED lighting productions.  Our company is in in strict accordance with ISO9001:2008 quality management system and ISO14001 environmental management system. And also our products passed CCC, CE, RoHS certificates! So we can supply satisfactory service for you!

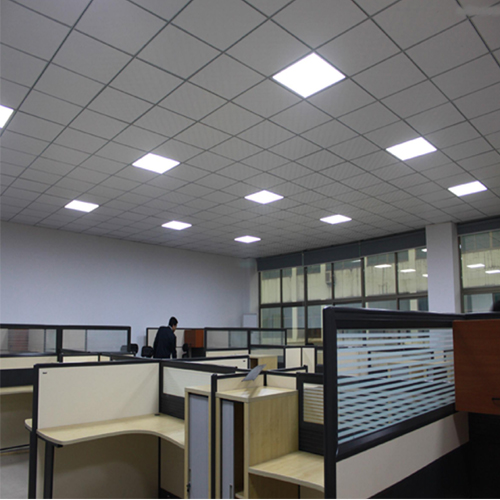

Can be uses in hotel, school,shopping mall, exhibition hall, plaze,wine bar,villa,coffee bar, deparment store and so on.
